63A Main DB HDB Singapore: Normal Voltage, Current & SS 638 Insulation Readings (LEW Guide)
Understanding the Importance of 63A main DB HDB Testing
Quick answer: A 63A main DB HDB in a Singapore flat should read 230V AC at 50Hz between Live and Neutral, under 2V AC between Neutral and Earth, and ≥1.0 MΩ insulation resistance at 500V DC on every sub-circuit — per SS 638. Anything outside these ranges signals a fault that needs a Licensed Electrical Worker (LEW). It’s crucial to regularly check the readings on your 63A main DB HDB.
Key takeaways
- Voltage (L–N and L–E): 230V AC nominal, with a statutory tolerance of 207V to 243.8V (+6% / −10%).
- Neutral–Earth voltage: 0V to under 2V AC under load. Higher = neutral imbalance.
- Insulation resistance: SS 638 minimum is 1.0 MΩ at 500V DC. Healthy HDB installs read 10 MΩ to >99.9 MΩ.
- RCCB: A 63A, 30mA double-pole RCCB protects the whole single-phase install.
- Mandatory rule: Only a Licensed Electrical Worker can modify, replace, or certify the DB under EMA rules.
Why your HDB DB readings matter (and what most owners get wrong)
If your DB box trips for “no reason,” lights dim when the aircon kicks in, or your appliances buzz — your numbers are talking to you. Most homeowners just reset the breaker. Bad move.
Behind the white plastic cover of every Singapore HDB DB box lives a measurable set of voltages, currents, and resistances. When those values drift, you’re seeing the first warning of insulation breakdown, neutral overload, or earthing failure — the same faults that cause electrical fires and failed EMA inspections every year.
This guide gives you the exact numbers a 63A single-phase HDB main DB should show under SS 638 — the testing values our LEW team applies on every Singapore install we certify. Use it to spot a faulty circuit before it becomes a hazard.
What is a 63A main DB in a Singapore HDB? (Definition)
A 63A main DB is the primary distribution board in a single-phase Singapore HDB flat, fed by SP Group’s grid at 230V AC, 50Hz. It’s controlled by a 63A Double-Pole Main Circuit Breaker (DP MCB) and protected by a 63A 30mA Residual Current Circuit Breaker (RCCB) — the unit that cuts power within milliseconds when it detects current leakage above 30 milliamps.
Almost every 3-room, 4-room, and most 5-room HDB flats run on this 63A single-phase setup. Larger executive units, maisonettes, and condos typically step up to 100A three-phase boards instead.
The DB then splits power into protected sub-circuits — lighting, sockets, aircon, water heaters, and kitchen heavy loads — each with its own MCB rating and cable size dictated by SS 638 (formerly CP5), Singapore’s Code of Practice for electrical installations.
This guide gives you the exact numbers a 63A main DB HDB should show under SS 638 — the testing values our LEW team applies on every Singapore install we certify. Use it to spot a faulty circuit before it becomes a hazard. Knowing your 63A main DB HDB readings can prevent serious issues.

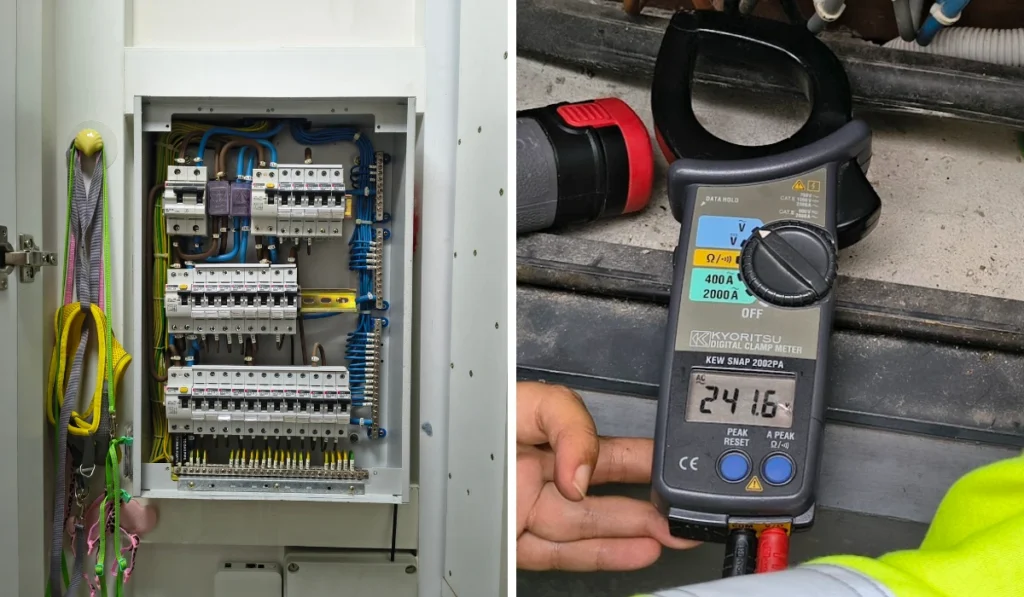

Normal single-phase voltage readings for a 63A HDB DB
Live voltage at the HDB DB box (or any working 13A socket) must fall within the statutory range published by the Energy Market Authority (EMA) and delivered by SP Group.
In conclusion, regular checks on your 63A main DB HDB are essential in keeping your home’s electrical system secure and functional.
| Measurement | Terminal test | Normal target | SS 638 tolerance | What it tells you |
|---|---|---|---|---|
| Live to Neutral | L–N | 230V AC | 207V – 243.8V (+6% / −10%) | Incoming grid stability. Real-world HDB: 225V–235V. |
| Live to Earth | L–E | 230V AC | 207V – 243.8V | Should match L–N. Lower = high-impedance or broken earth path down the riser. |
| Neutral to Earth | N–E | 0V to <2V AC | Max 2V AC under load | Above 2V = overloaded or compromised neutral. |
Therefore, understanding your 63A main DB HDB’s functionality is crucial for the safety and efficiency of your electrical systems.
LEW field note: If your L–N reads ~230V but your L–E reads 180V, the supply isn’t the problem — your earth bond is. That’s a same-day callout, not a “we’ll see.”
Insulation resistance is the dead test: main isolator off, every appliance unplugged, every light switched on so the circuit is in scope. The LEW then injects 500V DC with an insulation tester (commonly called a Megger) and reads resistance in megaohms (MΩ). Make sure to test your 63A main DB HDB regularly for safety.
Insulation resistance is the dead test: main isolator off, every appliance unplugged, every light switched on so the circuit is in scope. The LEW then injects 500V DC with an insulation tester (commonly called a Megger) and reads resistance in megaohms (MΩ).
Understanding the 63A main DB HDB in Singapore
The three insulation tests every 63A HDB DB must pass
- L + N ≥ 1.0 MΩ — confirms Live and Neutral copper cores aren’t shorted or melted together.
- L + E ≥ 1.0 MΩ — proves no leakage from Live conductors into metal trunking, conduit, or device chassis.
- N + E ≥ 1.0 MΩ — the most common silent failure. Low N–E insulation is the #1 hidden cause of random RCCB tripping in Singapore HDB flats.
LEW Technical Note — SS 638 sets the pass mark at 1.0 MΩ. That’s the floor, not the goal. A newly wired or properly maintained 63A HDB unit should comfortably show >10 MΩ, and ideally >99.9 MΩ across all three tests. Anything between 1 MΩ and 5 MΩ usually means moisture ingress at a water heater, nicked cable sheath in conduit, or aging insulation near the kitchen — and it will get worse, not better.
Common Issues with 63A main DB HDB Installations
63A HDB sub-circuit breakdown: breaker ratings, wire sizes, and what loads each one carries
Inside the DB, the 63A main feeds five typical sub-circuit families. Pairing the right MCB rating with the right cable gauge is non-negotiable under SS 638.
1. Lighting circuits (living room, bedrooms, kitchen, toilets)
- MCB: 10A Single-Pole
- Cable: 1.5 mm² Cu/PVC or Cu/PVC/PVC
- Standing load: Typically under 1A–3A total with modern LED lighting
- Testing tip: Remove LED drivers and bulbs before any 500V insulation test — drivers contain electronics that the Megger voltage can destroy.
2. Standard 13A wall sockets (BS 1363 outlets)
- MCB: 16A or 20A Single-Pole
- Cable: 2.5 mm² copper
- Covers: All single and twin 13A outlets across the living areas, study, and bedrooms
3. Kitchen heavy-load appliance points
- MCB: Dedicated 20A Single-Pole
- Cable: 2.5 mm² (standard) or 4.0 mm² (built-in ovens, induction hobs, large air fryers)
- Why are they separated? Kitchen circuits are isolated from bedroom circuits to prevent compounded overloads when multiple high-draw appliances run together.
For those living in Singapore, familiarizing yourself with the 63A main DB HDB specifications can greatly enhance your electrical safety.
Moreover, a well-maintained 63A main DB HDB will ensure fewer electrical faults and a safer living environment.
4. Air-conditioner (AC) isolator points
- MCB: 20A to 32A Single-Pole, sized to the compressor BTU rating
- Cable: 4.0 mm² to 6.0 mm², direct-wired to an external double-pole weather-resistant isolator switch
- Singapore-specific: Multi-split inverter systems on the ledge or service yard must terminate at an external isolator before the outdoor unit — not an internal-only switch.
5. Bathroom water heater points (storage or instant)
- MCB: 20A Single-Pole
- Cable: 2.5 mm² (storage) or 4.0 mm² (instant heaters)
- Switching: External double-pole wall switch outside the bathroom with a neon indicator so the heater state is visible at all times.
Normal current load on a 63A HDB single-phase supply
Current is what people actually pay for, and it’s the load that trips your breaker — not voltage.
- Background standing load (fridge, router, modem, standby items): 0.5A to 2.0A
- Daytime active load (lights, fans, TV, charging): 3A to 10A
- Peak family load (multiple aircons + water heater + induction cooking + oven): 30A to 45A
A 63A breaker is rated to carry 63A continuously without nuisance tripping, but it will trip on sustained overcurrent above that threshold. If your peak load regularly sits above ~50A, you’re a candidate for a load review — and possibly a step-up to three-phase if your aircon and EV charging needs are growing.
How to spot a failing 63A HDB DB (warning signs before the trip)
The DB rarely fails without warning. Watch for these signals:
- RCCB tripping at random times, often when no large appliance is on → suspect N–E insulation breakdown.
- Lights dim noticeably when the aircon or kettle starts → loose neutral or weak supply.
- Burning smell, browning, or scorch marks at any breaker or socket → arcing fault. Cut the main immediately and call an LEW.
- Buzzing or humming from the DB box → loose terminal screw, often at the main incoming.
- Hot DB cover to the touch → overloaded busbar or undersized cable, both unsafe.
A reading session by an LEW takes 30–60 minutes for a standard 4-room HDB flat. The cost of catching one of these early is a fraction of replacing a burned-out riser.
Why every DB modification needs an LEW in Singapore
This isn’t a paperwork thing. Under EMA regulations and SS 638, any structural electrical work in a Singapore HDB — including DB replacement, breaker upgrades, RCCB changes, sub-circuit additions, or rewiring — must be:
- Performed or supervised by a Licensed Electrical Worker (LEW) registered with EMA.
- Tested and certified with documented insulation, polarity, earth continuity, and RCD trip-time results.
- Issued a Certificate of Compliance (CoC) that you keep for HDB, insurance, and resale.
DIY work voids your home insurance, breaches your HDB tenancy or ownership conditions, and — if it causes a fire — exposes you to civil and criminal liability.
Frequently asked questions about HDB 63A main DB readings
What is the normal single-phase voltage reading for an HDB flat in Singapore?
The normal single-phase voltage reading for a Singapore HDB flat is 230V AC at 50Hz. Per EMA statutory tolerance under SS 638, any reading between 207V and 243.8V (+6% / −10%) is within spec. Real-world HDB Live-to-Neutral readings typically sit between 225V and 235V.
What is the minimum acceptable insulation resistance under SS 638?
Under SS 638, the minimum insulation resistance is 1.0 megaohm (MΩ) when tested at 500V DC across Live-Neutral, Live-Earth, and Neutral-Earth. That’s the pass floor. A healthy 63A HDB installation should easily read above 10 MΩ, and often higher than 99.9 MΩ.
Why does my HDB DB keep tripping when no appliances are on?
Repeat tripping with low load is almost always caused by insulation breakdown between Neutral and Earth (N–E) or moisture intrusion at a water heater, outdoor isolator, or kitchen point. The leakage current builds past the 30mA RCCB threshold and trips the board as designed. An LEW insulation test pinpoints the affected sub-circuit in under an hour.
What wire sizes are required for a 63A HDB sub-circuit?
A standard 63A HDB layout uses 1.5 mm² for lighting, 2.5 mm² for 13A sockets and water heaters, 2.5 mm² to 4.0 mm² for kitchen heavy loads, and 4.0 mm² to 6.0 mm² for aircon compressor circuits — all in copper conductors with PVC or PVC/PVC insulation per SS 638.
What is a normal current load on a 63A single-phase supply?
Background standing load runs 0.5A to 2.0A. Active daytime use sits 3A to 10A. Peak family load with multiple aircons, water heater, and induction cooking can spike to 30A to 45A — still safely within the 63A main breaker rating.
What should Neutral-to-Earth voltage be in a healthy HDB?
In a properly grounded 63A HDB single-phase install, N–E voltage should be 0V AC to under 2V AC. Sustained readings above 2V indicate a neutral imbalance, high return-path resistance, or a fault in the neutral conductor down the riser — all of which need LEW investigation.
Can I replace my HDB DB box breakers without an LEW?
No. All DB modifications, breaker replacements, RCCB upgrades, and sub-circuit additions in Singapore HDB flats must be performed by a Licensed Electrical Worker (LEW) registered with the Energy Market Authority. The LEW issues the Certificate of Compliance required for insurance, HDB compliance, and any future resale or rental.
Need a 63A HDB DB tested or upgraded? Talk to an LEW
MM Engineering Works Pte Ltd is a licensed electrical contractor based in Singapore. Our LEW team handles 63A and 100A DB installations, full insulation testing under SS 638, RCCB replacements, and full HDB rewiring with documented Certificates of Compliance.
If your DB is tripping, your readings look off, or you’re planning a renovation that needs a new DB or sub-circuit, request a site assessment — we’ll bring the test gear and the paperwork.
